Last update: 16 July 2024

Probes
Name P/N Appearance Qty Remarks Applicable models
Nut 225-25024-05 1 8080
O-ring 225-25024-03 1 8080
O-ring 2 225-25024-04 1 8080
Spring 225-25024-07 1 8080
Ferrule, 1.6F 228-16000-17 3 Made of stainless steel 2010A
2010EV
2010
Ferrule, 1.6F 228-16000-19 10 Made of stainless steel 2010A
2010EV
2010
APCI capillary 225-25024-11 1 8080
APCI cap 225-25024-10 1 8080
Corona needle 225-25024-13 1 8080
ESI capillary 1 8080
ESI probe
Name P/N Appearance Qty Remarks Applicable models
PEEL tube 1 LCMS-9030
9030
8060
8050
8030
8040
2020

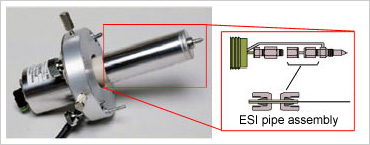

ESI pipe assembly 225-10737-91 1 Metal capillary
→ Reference Diagram
2010A
2010EV
ESI pipe assembly 1 High-durability metal capillary
Use this when the sample concentration is high such as for a contaminated sample or a composite material check.
2010A
2010EV

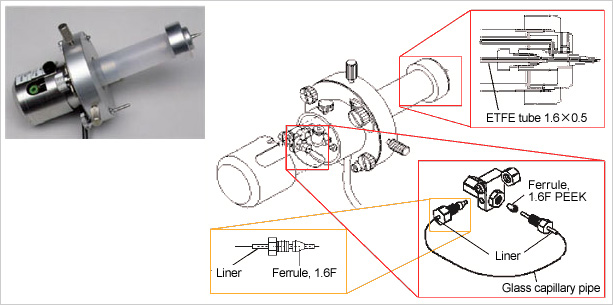

Glass capillary pipe 225-03982 1 Glass capillary
→ Reference Diagram
2010
Liner 5 For securing the glass capillary 2010
ETFE tube 1.6×0.5 1 For glass capillaries 2010
Ferrule, 1.6F PEEK 1 Made of PEEK resin 2010A
2010EV
2010
Ferrule, 1.6F PEEK 5 Made of PEEK resin 2010A
2010EV
2010
Capillary assembly 1 LCMS-9030
9030
8060
8050
8030
8040
2020
Sub Interface(LCMS-9030)
P/N Qty
1

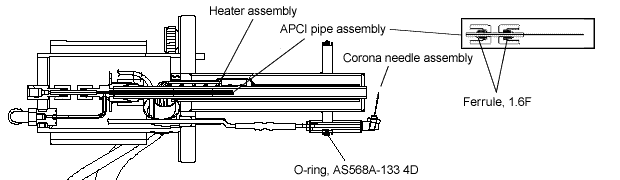

APCI probe
Name P/N Appearance Qty Applicable models
Heater assembly 225-15619-41 1 8060
8050
8030
8040
2020
Heater assembly 225-06475-91 1 2010A
2010EV
2010
Heater assembly 225-04936-91 1
Corona needle assembly 225-03961-91 1 2010A
2010EV
2010
O-ring, AS568A-133 4D 036-15551-33 1 2010A
2010EV
2010
APCI pipe assembly 225-15845-91 1 9030
8060
8050
8030
8040
2020
APCI pipe assembly 225-03983-93 1 2010A
2010EV
2010

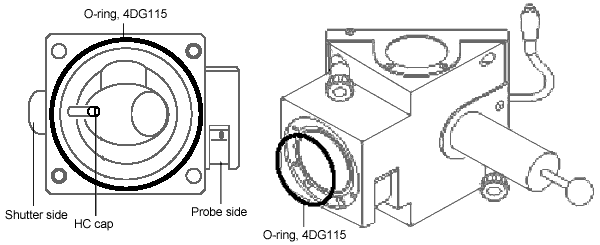

Probe holder
Name P/N Appearance Qty Remarks Applicable models
O-ring, 4DG115 036-12521 1 Connecting part between the probe holder and the interface section (CDL side) 2010EV
2010A
2010
O-ring, 4DG55 036-12507 1 Connecting part between the probe holder and the probe 2010EV
2010A
2010
HC cap 225-03917 1 Shutter rubber 2010EV
2010A
2010
