SH-65

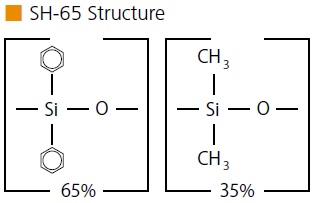

  • Mid-polarity phase: Crossbond™ 65% diphenyl / 35% dimethyl polysiloxane
  • General-purpose columns for phenols, fatty acids, triglycerides.
  • Equivalent to USP G17 phase.
  • Similar phases: Rtx-65, 007-65HT
P/N ID df (Film Thickness) Length Temp. Range
227-36172-01 0.25 mm 0.25 μm 30 m 50 to 300°C
227-36173-01 0.25 mm 0.50 μm 30 m 50 to 280/300°C
227-36174-01 0.25 mm 1.00 μm 30 m 50 to 260/280°C
227-36175-01 0.32 mm 0.25 μm 30 m 50 to 300°C
227-36176-01 0.32 mm 0.50 μm 30 m 50 to 280/300°C
227-36177-01 0.32 mm 1.00 μm 30 m 50 to 260/280°C
227-36178-01 0.53 mm 1.00 μm 30 m 50 to 250/270°C
