EXP® and EXP®2 Fittings

Add Bookmark

  • EXP®2 Fitting

    EXP2 Fitting

  • EXP®2 TI-LOK™

    EXP2 TI-LOK

  • The ultimate solution for reliable HPLC & UHPLC connections

  • EXP2 TI-LOK Fittings: Hand-Tight, High-Pressure Connections for HPLC/UHPLC

  • The EXP and EXP2 fittings offer an innovative design that combines the
    robustness of titanium with the sealing efficiency of PEEK material. This
    unique combination allows for repeat installation without compromising
    the high pressure seal.
    Unlike conventional crimped connections, the EXP and EXP2 fittings
    are reusable. This means you don't have to cut and replace the ferrules
    every time you disconnect and reconnect.
    The EXP and EXP2 fittings use non-crimp ferrules, giving you the freedom
    to use any brand of 1/16" tubing. You are not tied to a specific
    supplier.
    The precise design of EXP and EXP2 fittings ensures a leak-free
    connection with no additional volume in the flow path (ZDV). This is
    particularly important for applications where minimising dead volume
    is critical.

  • The EXP2 TI-LOK fittings are designed for easy installation and reliable
    performance in HPLC and UHPLC applications. These fittings can be
    hand-tightened to an impressive 18,000+ psi, making them ideal for
    tight spaces like injection valves and column components.
    The secret lies in a combination of innovative materials and design. The
    fittings utilize a precision-machined titanium nut and a built-in PEEK
    ferrule. This combines the strength and corrosion resistance of titanium
    with the superior sealing ability of PEEK.
    The unique geometric design ensures a zero-dead-volume (ZDV)
    connection by firmly pressing the tubing against the instrument port.
    Unlike traditional fittings, the ferrule doesn't permanently deform the
    tubing, allowing for multiple uses and adjustments for different port
    depths.
    EXP2 TI-LOK fittings are compatible with various tubing materials like
    PEEK, PEEKsil, Hastelloy C, and stainless steel. They also come with a
    small, easy-to-use EXP2 Driver for hand-tightening and loosening the
    connection. This driver can be removed after use.
    For situations where space isn't a major concern, we also offer the
    EXP2 TI-LOK AIO Fitting. This version features all the same benefits but
    with a permanently attached driver for even more convenience.

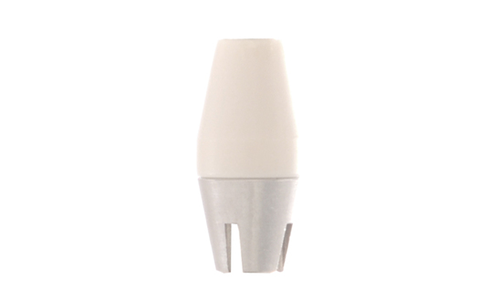

EXP Replacement Ferrule
1/16" Titanium Hybrid Ferrule

Description Quantity P/N Picture
EXP Ferrule Titanium Hybrid 1 980-20505
980-20505
10 980-16818

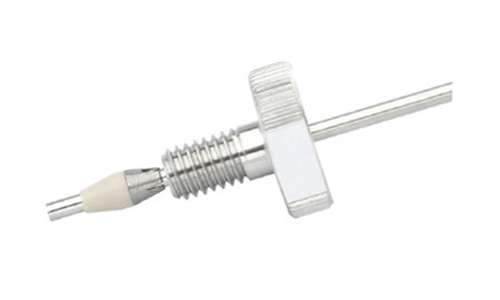

EXP Fitting
1/16" Titanium Hybrid Ferrule

Description Quantity P/N Picture
EXP Hand-Tight Fitting with Hybrid Ferrule 1 980-20506
980-20506
10 980-16819

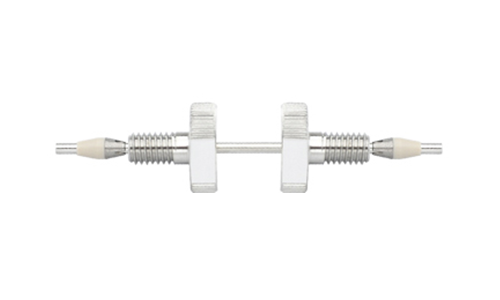

EXP Coupler
1/16" Titanium Hybrid Ferrule

Description Quantity P/N Picture
EXP Hand-Tight Coupler incl.
2 Hand-Tight Nuts
2 Hybrid Ferrules		 1 980-20269
980-20269

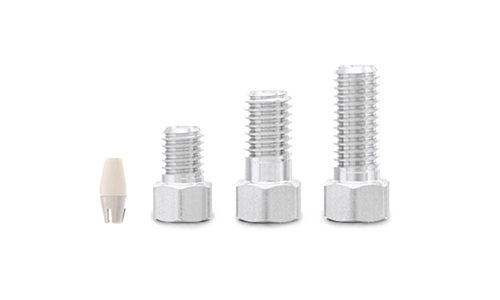

EXP Hex Head Fitting
1/16" Titanium Hybrid Ferrule

Description Quantity P/N Picture
EXP Std HexHead Fitting with Hybrid Ferrule 1 980-20499
980-20499
10 980-16817
EXP Short HexHead Fitting with Hybrid Ferrule 10 980-2500
EXP Long HexHead Fitting with Hybrid Ferrule 10 980-20383

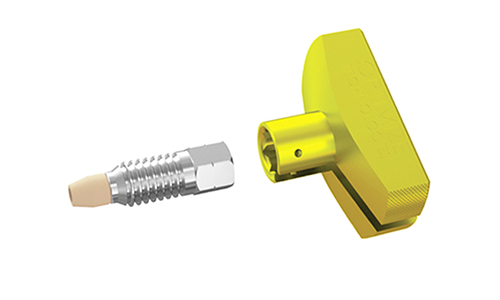

EXP®2 TI-LOK™
1/16" PEEK Ferrule

Description Quantity P/N Picture
EXP2 TI-LOK Hand-Tight Fitting with Integral Ferrule incl. 1 Driver and Fittings 2 980-33018
980-33018
10 980-33019

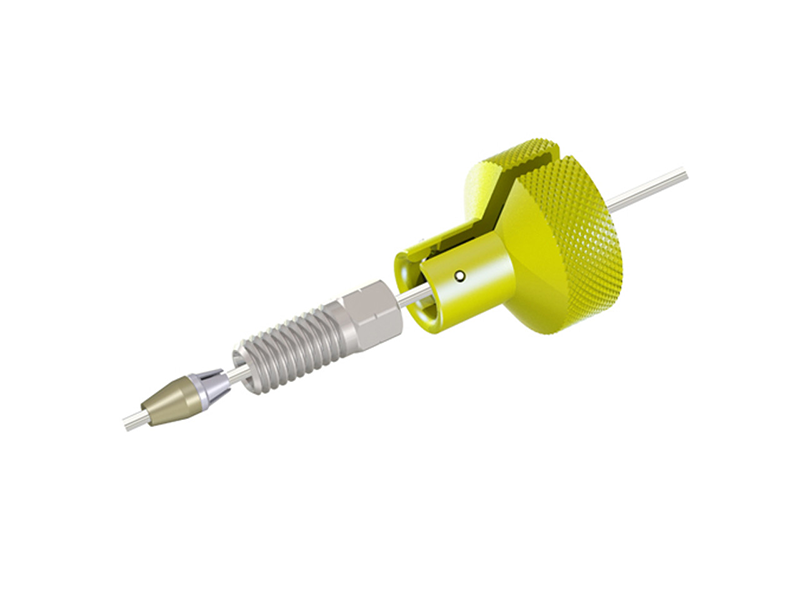

EXP®2 Fitting
1/16" Titanium Hybrid Ferrule

Description Quantity P/N Picture
EXP2 Hand-Tight Fitting with hybrid Ferrule incl. 1 Driver and Fittings 2 980-33020
980-33020
10 980-33021

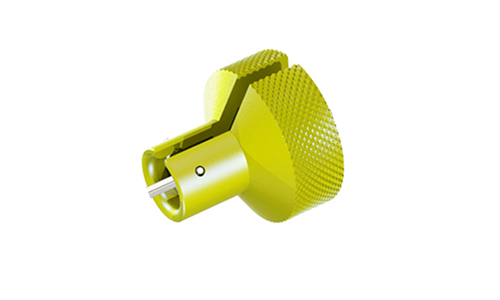

EXP®2 Driver
(Driver only)

Description Quantity P/N Picture
EXP2 Fitting Driver 1 980-33022
980-33022

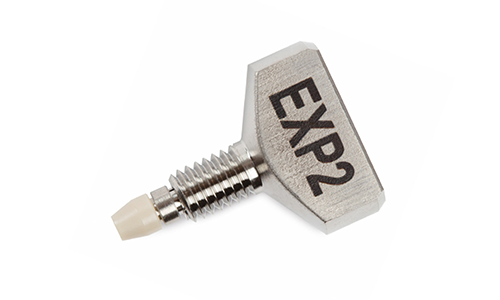

EXP®2 TI-LOK™ All-in-One
1/16" PEEK Ferrule

Description Quantity P/N Picture
EXP2 TI-LOK AIO Hand-Tight Fitting with
Integral Ferrule		 1 980-33016
980-33016
10 980-33017

Features

  • EXP® & EXP®2 Fitting Systems
    High-Pressure, Reusable Connections for Demanding HPLC/UHPLC Applications
    Next-Gen EXP2 Offers Hand-Tightened, High-Pressure Connections
    Achieve Zero Dead Volume with Adjustable, Reusable Designs
  • EXP®2 TI-LOK™
    High-Performance Fittings for Liquid Chromatography
    Simple, Hand-Tightened Connections for All LC Applications
    Achieve Zero Dead Volume with Titanium & PEEK Technology
    High-Pressure, Reusable Connections for HPLC & UHPLC
