Metal Columns Connecting Parts

Conventional column connection solutions often don't work for metal columns due to different material properties and their larger outer diameter. The following solution can be used to connect 2 metal columns:

		Coulmn ID
		0.53 mm to			0.32 mm to		0.25 mm to
P/N	Description	0.53 mm	0.32 mm	0.25 mm	0.32 mm	0.25 mm	0.25 mm
980-06597	UNION 1/16", .25mm bore, SS	-	-	1	-	1	1

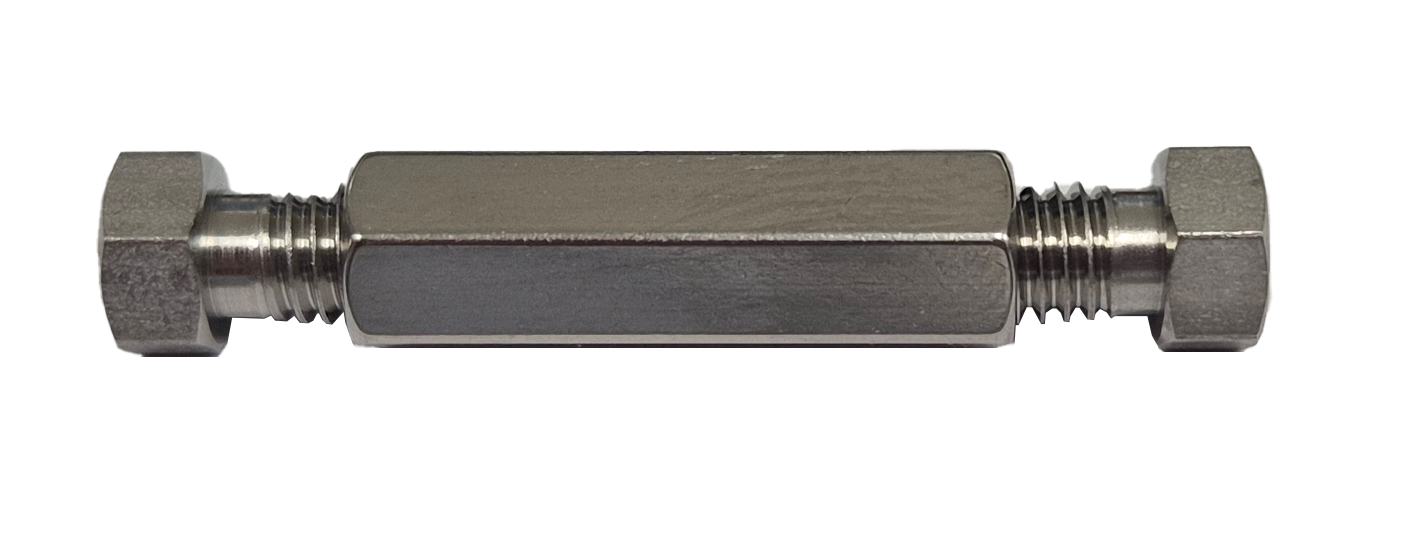

980-03168	Union 1/16" 5mm bore, SS	1	1	-	1	-	-
980-01428	FUSED SILICA ADAPTER 1/16", OD 0.4-0.5MM	-	-	1	-	1	2

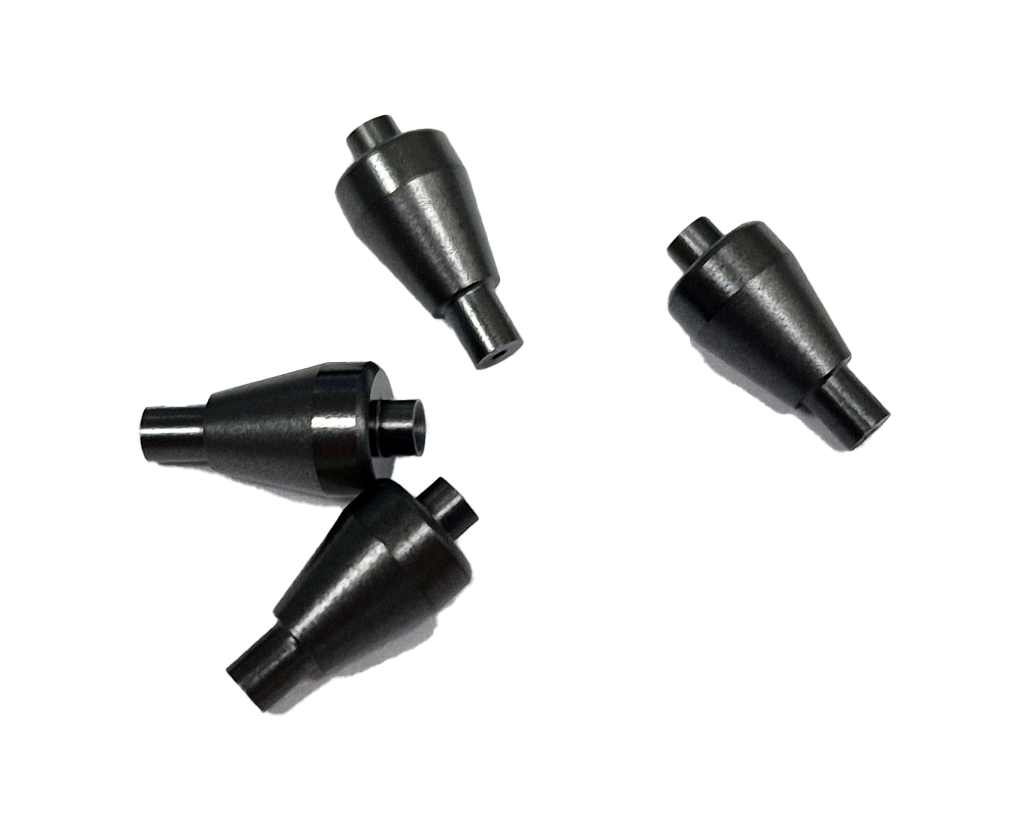

980-05636	FUSED SIL. ADAPTER 1/16", OD 0.5-0.8MM	2	2	1	2	1	-

How to read the table:
E.g. to connect 0.53 mm to 0.53 mm you have to order
1x 980-03168
2x 980-05636
