Waters Empower chromatography data systems can now be used to control AOC-30 autoinjectors in Shimadzu Nexis™ GC-2030 systems and perform packed column analysis. Space-saving AOC-30 systems offer reliable and long-term performance, and support capillary/packed column analysis using only a single GC-2030 system.
Nexis GC-2030 - Options
Gas Chromatograph
Options for Expanding Your Productivity
Simultaneously Control Up to Three Injection Units and Four Detectors
Up to four types of injection units or six types of detectors can be selected depending on the purpose of analysis and target components. Four detectors can be controlled simultaneously using LabSolutions.
Note: The number of detectors installed depends on the type. The injection port can control up to two devices simultaneously.Inlets
Split/Splitless Injector (SPL) |
|
---|---|
Direct Injection Unit (WBI) |
|
On-Column Injection Unit (OCI) |
|
Programmed Temperature Vaporization Injector (PTV) |
|
Packed Column Injection Unit (SINJ) |
|
Detectors
Barrier Discharge Ionization Detector (BID)
|
The barrier discharge ionization detector (BID-2030) is a universal detector that offers high-sensitivity analysis by using a low-frequency dielectric barrier discharge plasma for ionization. The BID generates helium (He) plasma by applying a high voltage to a quartz glass tube. The light energy from the He plasma then ionizes the target components and the ions are collected and output as peaks using a collection electrode. A wide variety of compounds other than He and neon (Ne) are detected with high sensitivity. |
---|---|
Flame Ionization Detector (FID) | The jet and collector structure on the flame ionization detector (FID-2030) has been optimized to provide improved performance. Noise levels were also decreased by improving the stability of the signal processor and flow controller. This results in the world’s most sensitive FID*. |
Sulfur Chemiluminescence Detector (SCD) | SCDs are the most sensitive GC detectors for measuring sulfur components. The Nexis SCD-2030 is equipped with an ultra-short flow path and high efficiency redox cell, so it provides the world’s highest level* of sensitivity and stability. In addition, detector startup is automated, easing the burden on operators. |
Thermal Conductivity Detector (TCD) |
|
Flame Photometric Detector (FPD) |
|
Electron Capture Detector (ECD) |
|
Flame Thermionic Detector (FTD) |
|
*As of July 2021, according to a Shimadzu survey
GC Software
-
-
Chromeleon chromatography data systems can now be used to control AOC-30 autoinjectors in Shimadzu Nexis™ GC-2030 systems and perform packed column analysis. Space-saving AOC-30 systems offer reliable and long-term performance and support capillary/packed column analysis using only a single GC-2030 system.
-
The Calorific Calculation Software can automatically calculate calorific values and generate reports that comply with BTU and ISO 6976. In addition, the target gas can be registered according to the customer’s requirement.
-
Agilent OpenLab CDS chromatography data systems can now be used to control AOC-30 autoinjectors in Shimadzu Nexis™ GC-2030 systems and perform packed column analysis. Space-saving AOC-30 systems offer reliable and long-term performance, and support capillary/packed column analysis using only a single GC-2030 system.
LabSolutions Series
-
LabSolutions CS features an innovative operating environment and provides complete data management to ensure secure information in networked laboratories.
-
LabSolutions DB has a data management function and is compliant with the ER/ES Regulations. It is optimally configured for customers using a PC.
Related information
-
The Nexis™ SCD-2030 is a next-generation sulfur chemiluminescence detection system.
The dramatically enhanced sensitivity and reliability, the excellent maintainability, and the automation functions will improve laboratory productivity. -
The AOC-20 Series is the perfect solution for automated analyses.
-
Pyrolysis gas chromatography mass spectrometry (Py-GCMS) can be used to characterize most materials including insoluble and complex materials at trace levels often without any sample pretreatment e.g. polymers, plastics, rubber, paints, dyes, resins, coatings, cellulose, wood, textiles, oils etc.
-
The Shimadzu simulated distillation system, consisting of a Nexis GC-2030 high-performance capillary gas chromatograph and LabSolutions simulated distillation GC analysis software, meets all applicable ASTM, ISO, EN, and JIS standards.
-
Gas compositions produced in refinery plants consist of hydrocarbons, permanent gases, H2S, etc.
-
GC Consumables are designed to complement your Shimadzu GC Systems.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Simultaneous Three-Column Analysis with a Single Sample Injection.
-
Impurities in gases, such as hydrocarbons, moisture and oxygen, can contaminate the gas line and instrument, cause column degradation and affect the accuracy of your analysis results, which may lead to instrument downtime.
-
Recently, natural gas has been recognized as a clean resournce for energy, in addition to being a raw material for chemical products.
-
A gas chromatograph is used for composition analysis of gasoline and its additives in order to improve fuels' performance.
-
The purpose of detailed hydrocarbon analysis (DHA) is to determine the bulk hydrocarbon group type composition (PONA: Paraffins, Olefins, Naphthenes and Aromatics) of gasoline and other spark-ignition engine fuels that contain oxygenate blends (Methanol, ethanol, MTBE, ETBE, and TAME) according to ASTM-D6730.
-
It is necessary to analyze outgas in transformer insulation oil in power plant facilities.
-
High-purity gas is necessary in industries such as chemical, medical, and foods.
-
Some sulfur compounds are known to be not only hazardous but also catalytic poisons.
-
A gas chromatograph is used for impurity analysis of intermediate or final products in various chemical fields.
-
Gas chromatographs help analyze green house gases in air and soil.
-

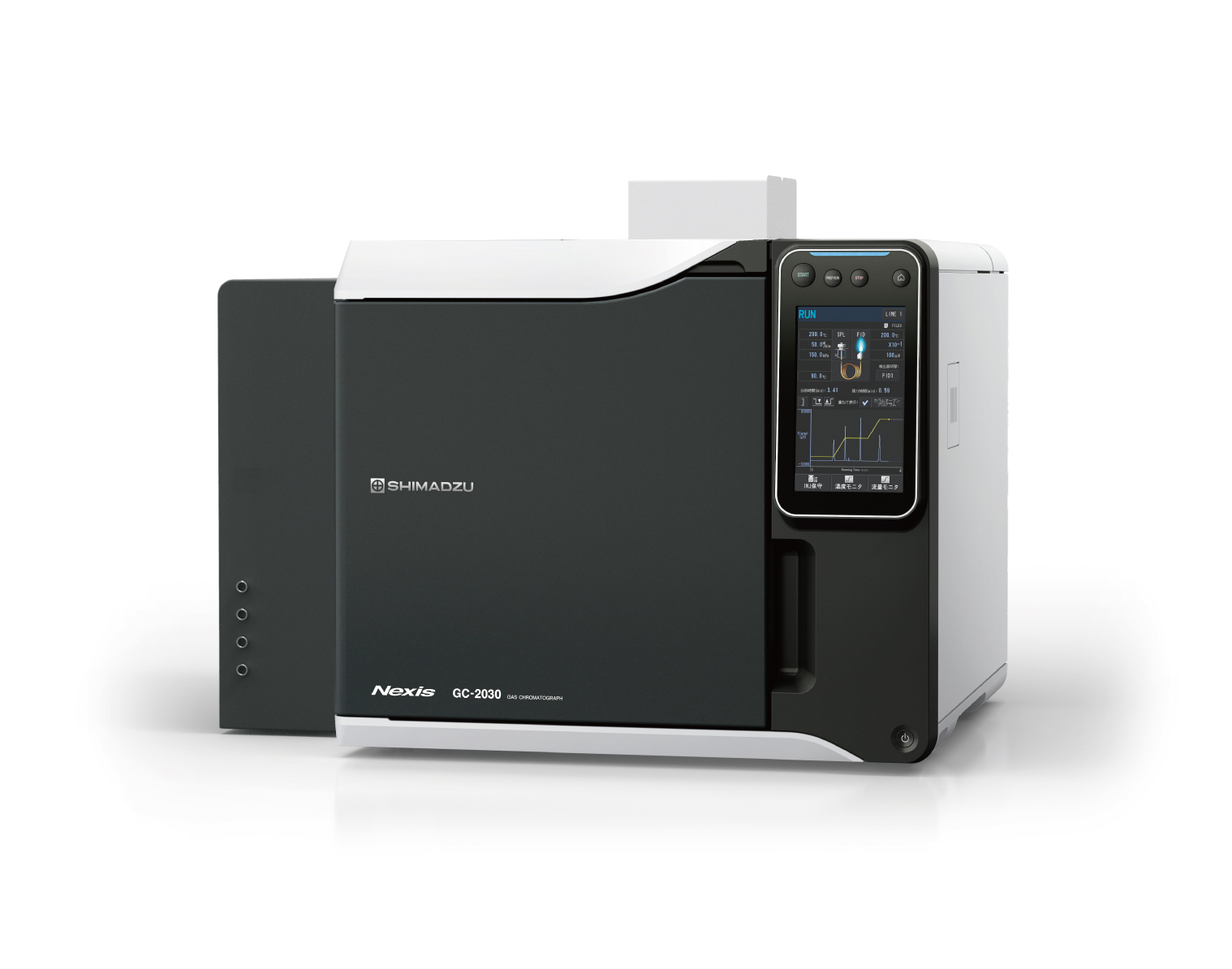

Analyzing moisture, and how much of it, is critical to the performance of petroleum products, as well as infrastructure and product integrity.
-
